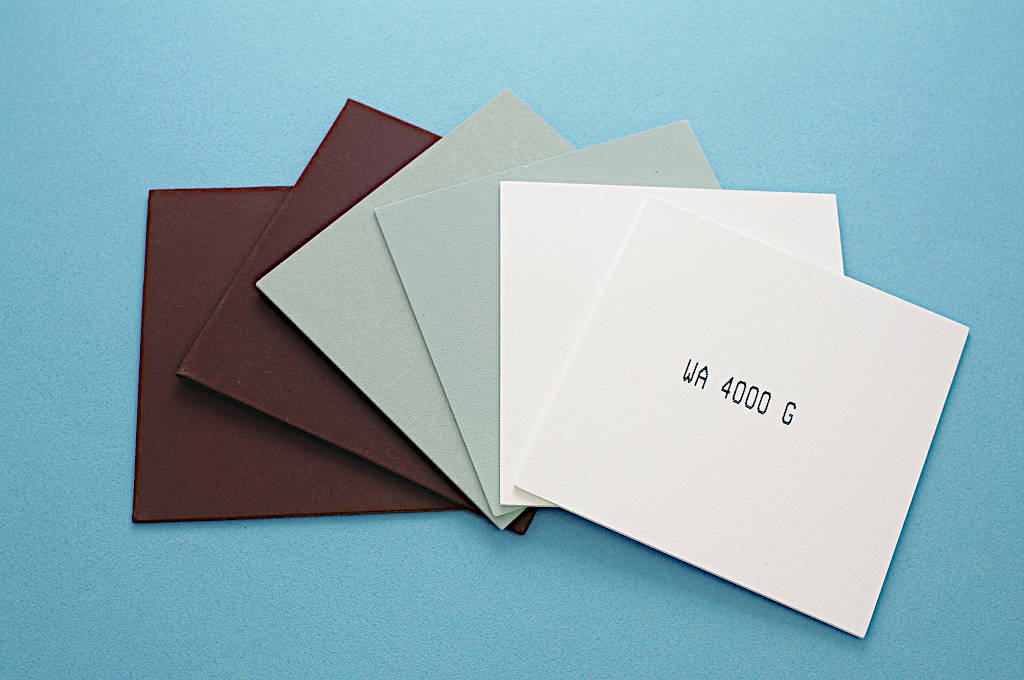

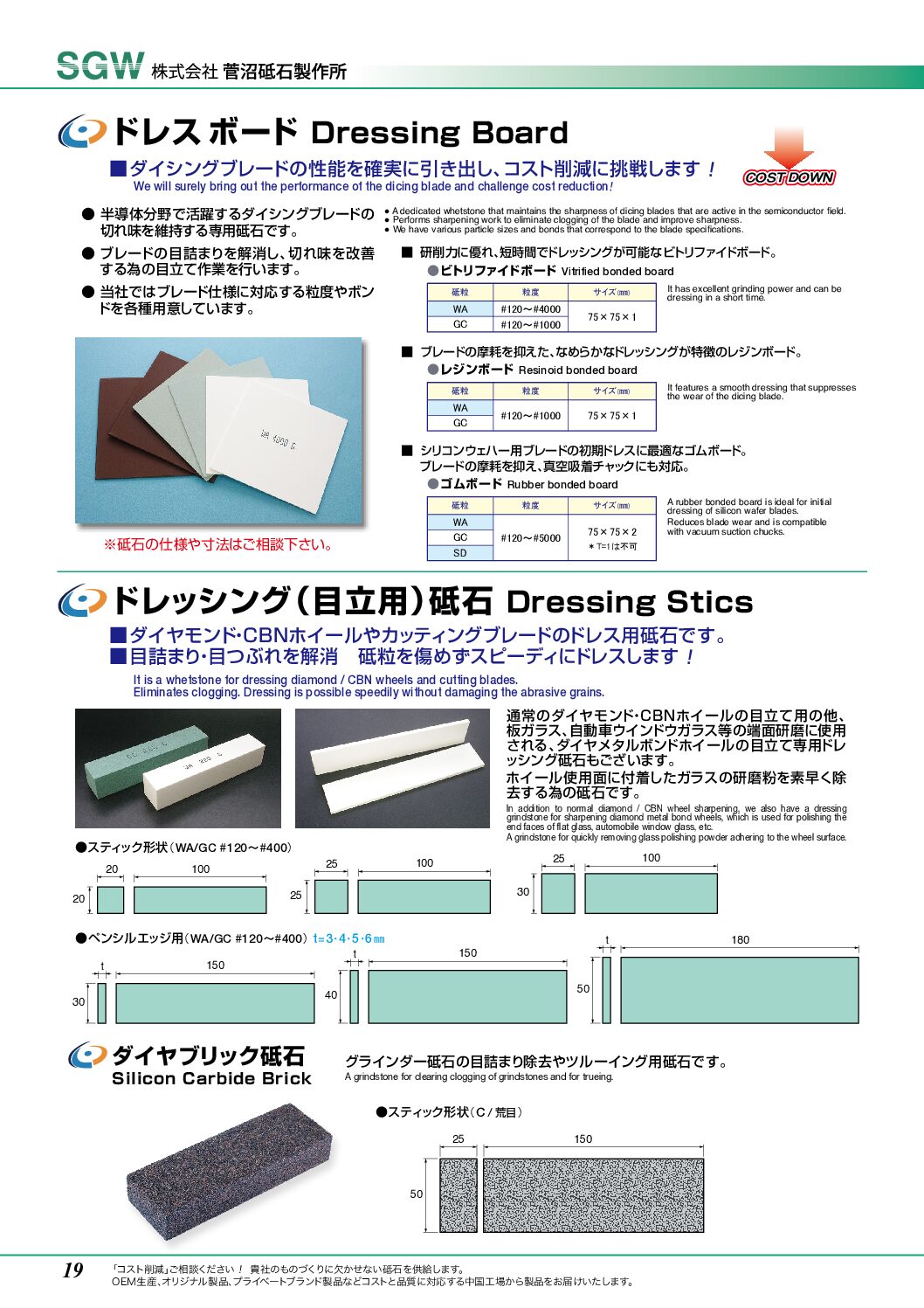

ドレス ボード – Dressing Board

■ ダイシングブレードの性能を確実に引き出し、コスト削減に挑戦します!

ダイシングブレードの性能を確実に引き出し、コスト削減に挑戦します!

ドレス ボード

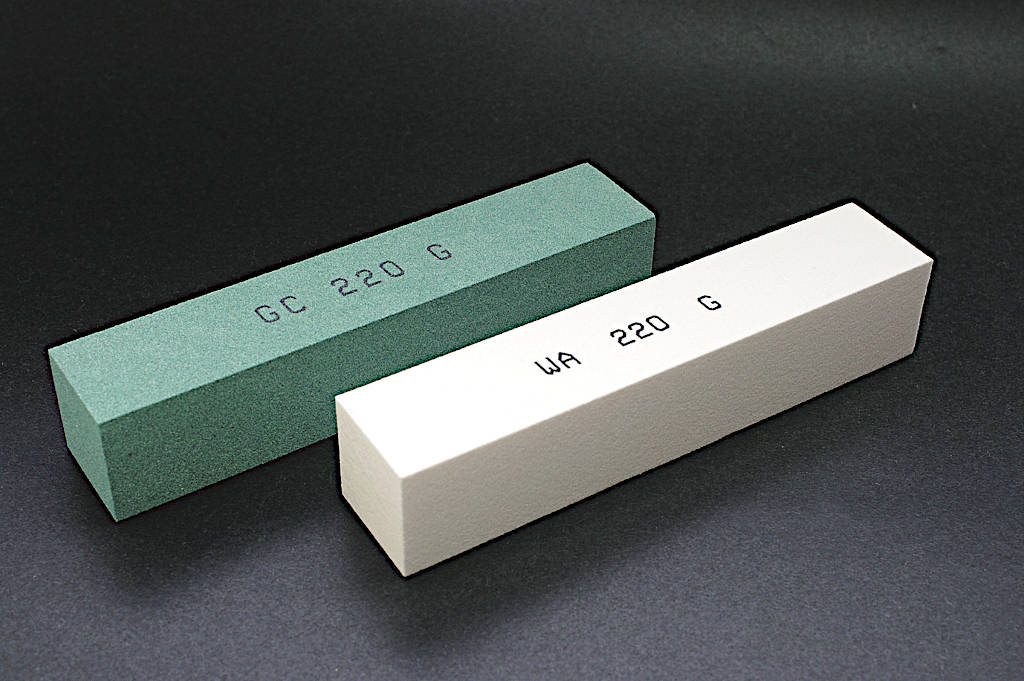

ドレッシング(目立用)砥石 – Dressing Stics

■ ダイヤモンド・CBNホイールやカッティングブレードのドレス用砥石です。
■ 目詰まり・目つぶれを解消 砥粒を傷めずスピーディにドレスします!

It is a whetstone for dressing diamond / CBN wheels and cutting blades.
Eliminates clogging. Dressing is possible speedily without damaging the abrasive grains.

ドレッシング(目立用)砥石

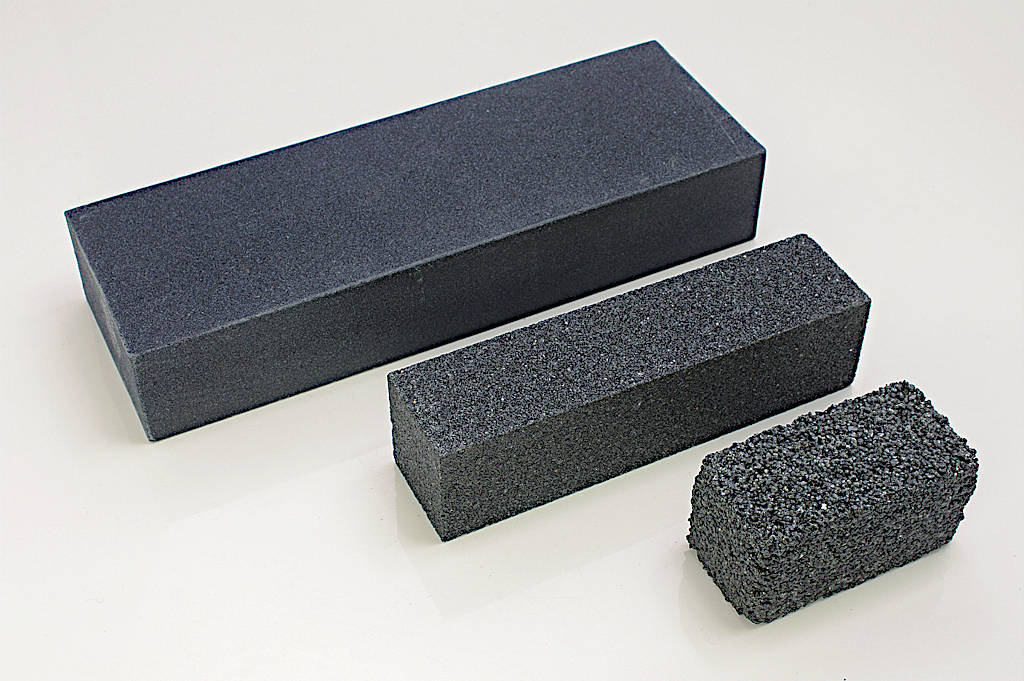

ダイヤブリック砥石 – Silicon Carbide Brick

グラインダー砥石の目詰まり除去やツルーイング用砥石です。

A grindstone for clearing clogging of grindstones and for trueing.

ダイヤブリック砥石

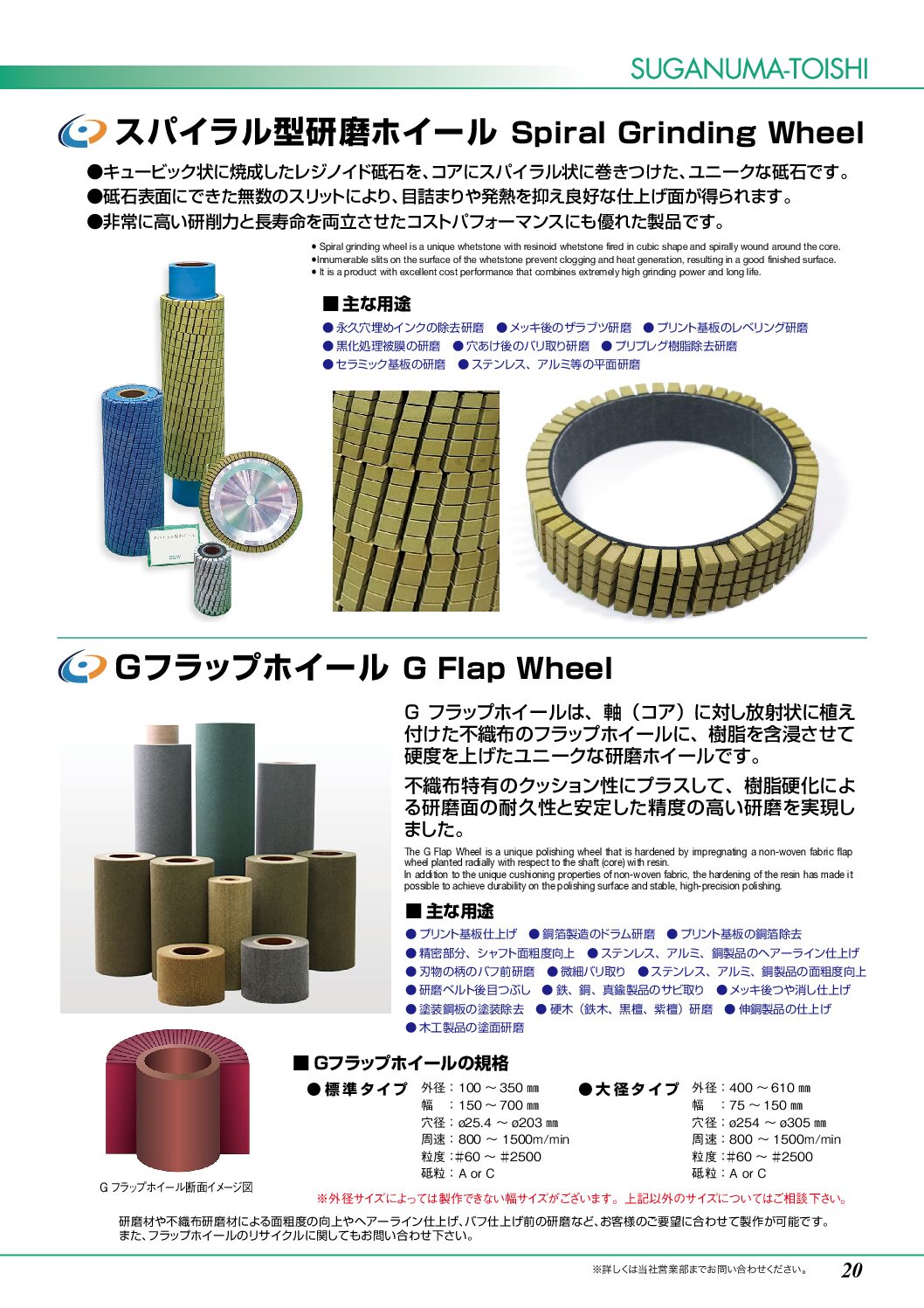

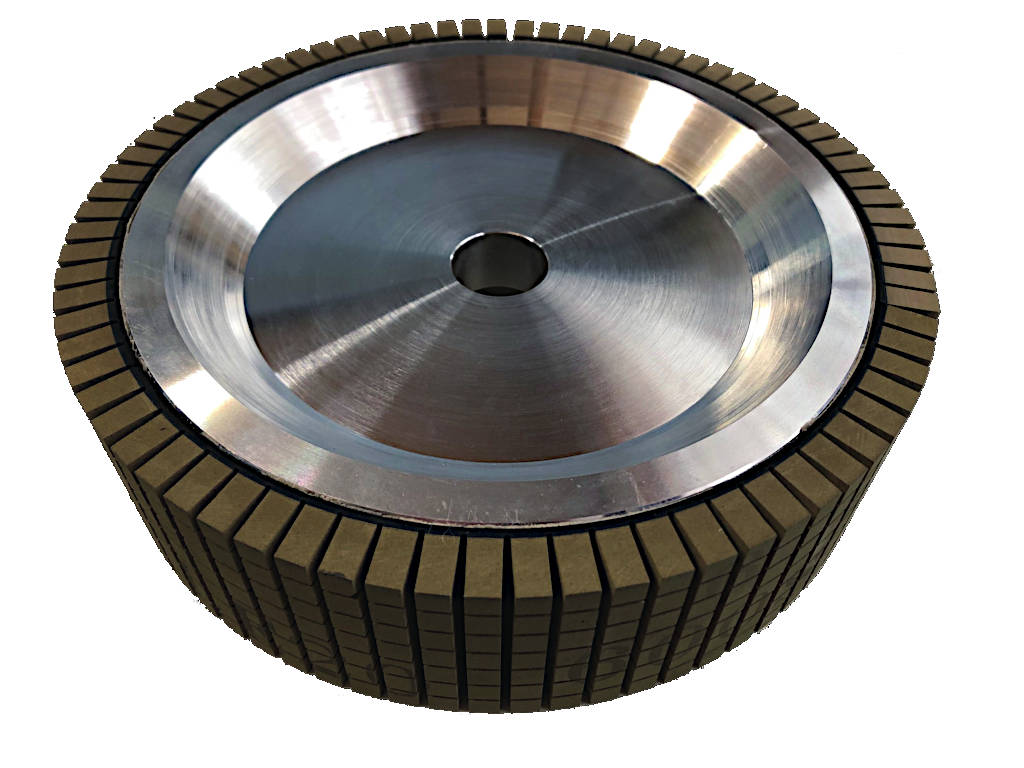

スパイラル型研磨ホイール – Spiral Grinding Wheel

● キュービック状に焼成したレジノイド砥石を、コアにスパイラル状に巻きつけた、ユニークな砥石です。
● 砥石表面にできた無数のスリットにより、目詰まりや発熱を抑え良好な仕上げ面が得られます。
● 非常に高い研削力と長寿命を両立させたコストパフォーマンスにも優れた製品です。

● Spiral grinding wheel is a unique whetstone with resinoid whetstone fired in cubic shape and spirally wound around the core.
● Innumerable slits on the surface of the whetstone prevent clogging and heat generation, resulting in a good finished surface.
● It is a product with excellent cost performance that combines extremely high grinding power and long life.

スパイラル型研磨ホイール

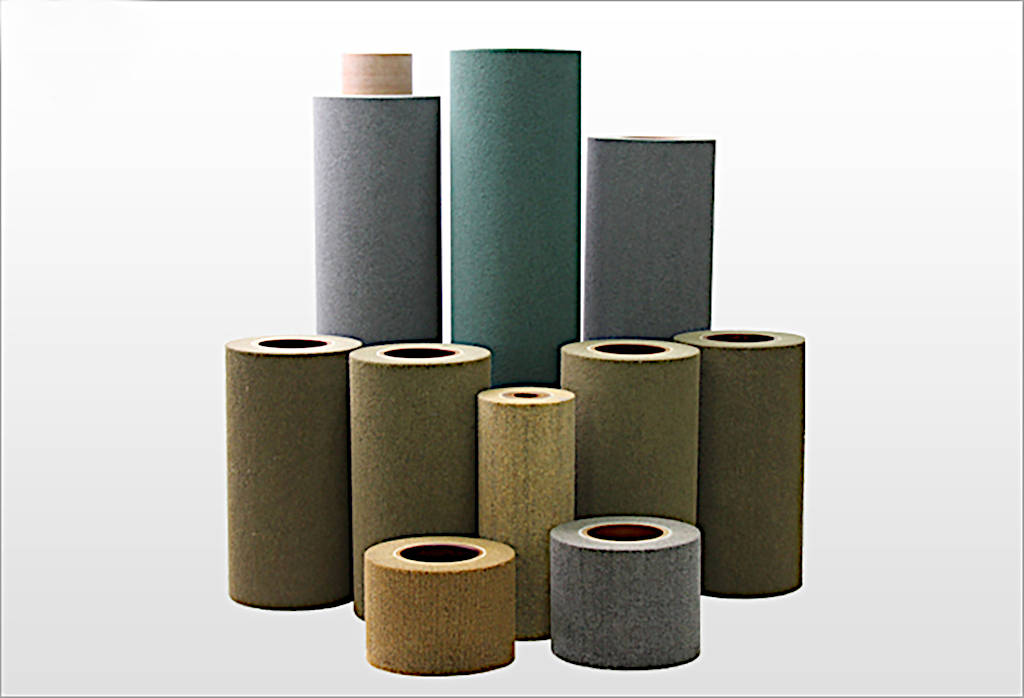

Gフラップホイール – G Flap Wheel

G フラップホイールは、軸(コア)に対し放射状に植え付けた不織布のフラップホイールに、樹脂を含浸させて度を上げたユニークな研磨ホイールです。
不織布特有のクッション性にプラスして、樹脂硬化による研磨面の耐久性と安定した精度の高い研磨を実現しました。

The G Flap Wheel is a unique polishing wheel that is hardened by impregnating a non-woven fabric flap wheel planted radially with respect to the shaft (core) with resin.
In addition to the unique cushioning properties of non-woven fabric, the hardening of the resin has made it possible to achieve durability on the polishing surface and stable, high-precision polishing

Gフラップホイール
